Merkur Depot shorty rad fan setups

Post by milehighXR » Sat May 09, 2015 4:28 pm

I wanna see pics(sent direct to me, or links to them) of what folks are doing for radiator fans for Merkur depot shorty rads. These only come with one flange at the bottom of the rad(at least mine did), and I have a Cossie 2wd IC mounted above my rad, but the fan setup I had previously I don't think will work, unless I have someone weld a flange on the top of the rad for me. So lets see those pics.
Johnny


1 86 XR aka Naomi- my first love, now project car
1 14 black Fiesta SE aka Fiona- my new DD

DCLXVI

User avatar
Matt01
Level 4
Level 4
Posts: 470
Joined: Fri Aug 10, 2012 11:29 pm
Location: Montreal (Canada)

Re: Merkur Depot shorty rad fan setups

Post by Matt01 » Sat May 09, 2015 6:15 pm

like everyone:

lowered86
Level 3
Level 3
Posts: 284
Joined: Wed Feb 18, 2004 3:32 am
Location: Elko, NV

Re: Merkur Depot shorty rad fan setups

Post by lowered86 » Sat May 09, 2015 11:01 pm

Single fan from Siliconeintakes.com. Attached it with included plastic fasteners. It has been on my daughter's car almost 3 years without issue.



User avatar
Esteban
Level 7
Level 7
Posts: 1980
Joined: Wed Mar 24, 2010 2:07 am
Location: San Diego

Re: Merkur Depot shorty rad fan setups

Post by Esteban » Sun May 10, 2015 12:55 am

At the bottom, I used nuts and bolts. At the top, i used the zip ties they provide. Can send you a photo if you pm me your number.

85xr
Level 2
Level 2
Posts: 158
Joined: Sat Oct 04, 2008 7:18 am
Location: dayton oh

Re: Merkur Depot shorty rad fan setups

Post by 85xr » Sun May 10, 2015 6:57 am

So, is a shroud not needed with the shorty? :econfused
greg

timandsam
Level 4
Level 4
Posts: 388
Joined: Thu Mar 08, 2012 10:31 pm
Location: Auburn, PA

Re: Merkur Depot shorty rad fan setups

Post by timandsam » Sun May 10, 2015 2:04 pm

85xr wrote:So, is a shroud not needed with the shorty? :econfused
Looks like lots are running without one (including myself) but i thought this was a good idea: viewtopic.php?f=30&t=28838&start=0#p264699

He used a shroud for a Miata. Pretty inventive.
Mono Silver 85 XR4Ti: Ported Head| Ported Intakes|Schneider Roller Cam|Big NPR IC|3” Exhaust|Ported E6|Walbro 255|PiMP|80lb injectors|HE341|Alkycontrol|T5Z

User avatar
Esteban
Level 7
Level 7
Posts: 1980
Joined: Wed Mar 24, 2010 2:07 am
Location: San Diego

Re: Merkur Depot shorty rad fan setups

Post by Esteban » Mon May 11, 2015 2:33 am

If you use 2 12" fans, then there isnt much surface area left uncovered. You'll be fine.

User avatar
John Brennan
Level 8
Posts: 11519
Joined: Wed Jun 18, 2003 4:19 pm
Location: Scottsdale, AZ "Summer Is Coming"

Re: Merkur Depot shorty rad fan setups

Post by John Brennan » Mon May 11, 2015 9:44 am

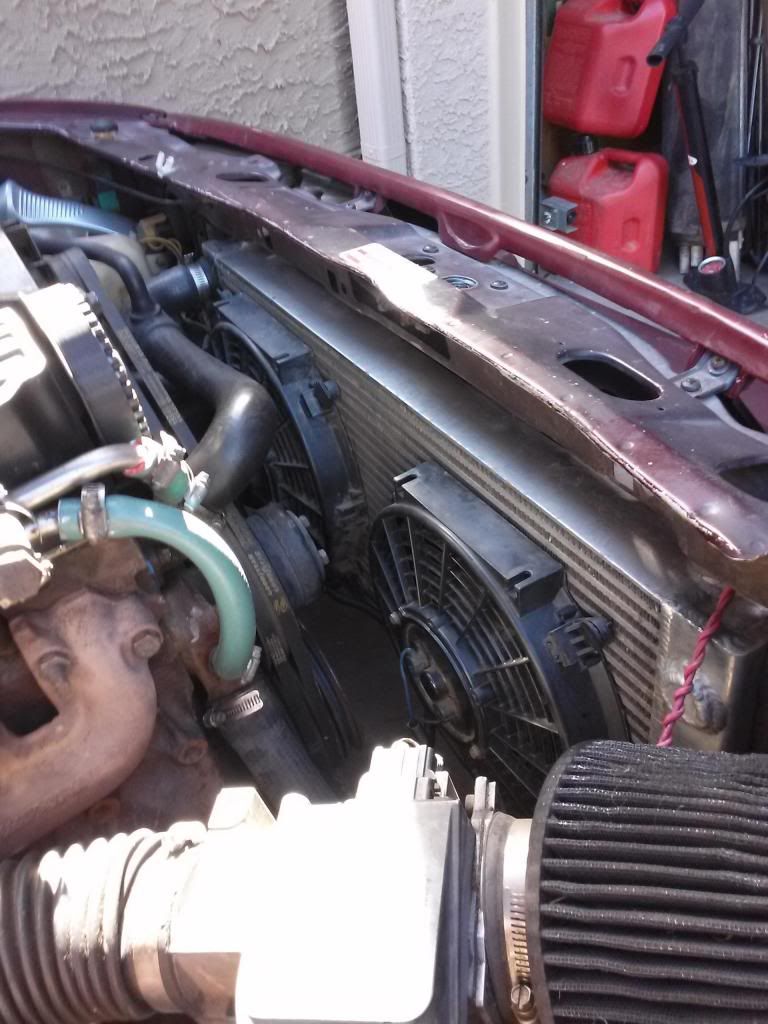

Here's my setup. Shorty has been moved to the top to allow the use of the stock '89 upper hose, make space for the IC at the bottom:



This is my car, and these are my people!
1989 XR4Ti 5-Speed
2001 BMW Z3 3.0 5-Speed
2015 Fiesta ST 6-Speed
2015 Edge 3.5 V6 Auto/Paddles

User avatar
Matt01
Level 4
Level 4
Posts: 470
Joined: Fri Aug 10, 2012 11:29 pm
Location: Montreal (Canada)

Re: Merkur Depot shorty rad fan setups

Post by Matt01 » Mon May 11, 2015 9:59 am

John Brennan wrote:Here's my setup. Shorty has been moved to the top to allow the use of the stock '89 upper hose, make space for the IC at the bottom:



in my setup the stock 89 hose works fine with the rad lower too.

User avatar
John Brennan
Level 8
Posts: 11519
Joined: Wed Jun 18, 2003 4:19 pm
Location: Scottsdale, AZ "Summer Is Coming"

Re: Merkur Depot shorty rad fan setups

Post by John Brennan » Mon May 11, 2015 11:14 am

It was stretching a bit with mine, plus I like having the vent hose at or near the highest point on the engine side. This also gave a lot more room for the Porsche 944T IC I was planning on installing at the time, or any number of other aftermarket IC's.
This is my car, and these are my people!
1989 XR4Ti 5-Speed
2001 BMW Z3 3.0 5-Speed
2015 Fiesta ST 6-Speed
2015 Edge 3.5 V6 Auto/Paddles

Ed Lijewski
Level 8
Posts: 7154
Joined: Thu Sep 04, 2003 5:53 pm
Location: The Belly of The Beast

Re: Merkur Depot shorty rad fan setups

Post by Ed Lijewski » Mon May 11, 2015 11:23 am

Darn near direct routing for radiator fan air to VAM.

YMMV 8)
Descartes: "Cogito Ergo Sum"
Lijewski: "Sum Ergo Drive-O. Mucho!

User avatar
John Brennan
Level 8
Posts: 11519
Joined: Wed Jun 18, 2003 4:19 pm
Location: Scottsdale, AZ "Summer Is Coming"

Re: Merkur Depot shorty rad fan setups

Post by John Brennan » Mon May 11, 2015 11:53 am

Pic is older, there was a project (turbo replacement) underway at the time it was taken; VAM/filter were wired up and out of the way (red wire). Filter resides next to holes for stock airbox setup, barrier separates it from engine compartment air. So don't worry, the kids are alright.
This is my car, and these are my people!
1989 XR4Ti 5-Speed
2001 BMW Z3 3.0 5-Speed
2015 Fiesta ST 6-Speed
2015 Edge 3.5 V6 Auto/Paddles

Ed Lijewski
Level 8
Posts: 7154
Joined: Thu Sep 04, 2003 5:53 pm
Location: The Belly of The Beast

Re: Merkur Depot shorty rad fan setups

Post by Ed Lijewski » Mon May 11, 2015 12:27 pm

So, caption "old" photo(s) thatly ^^^.

YMMV 8)
Descartes: "Cogito Ergo Sum"
Lijewski: "Sum Ergo Drive-O. Mucho!

User avatar
John Brennan
Level 8
Posts: 11519
Joined: Wed Jun 18, 2003 4:19 pm
Location: Scottsdale, AZ "Summer Is Coming"

Re: Merkur Depot shorty rad fan setups

Post by John Brennan » Mon May 11, 2015 12:46 pm

Gosh darn it, I'm so sorry I forgot that, I'll try to do next time better, Sir. :notworthy

By the way, are you still "cooling" your TCIC from bottom to top and "venting" the air out from that credit-card-sized slot on the back corner of the hood?
This is my car, and these are my people!
1989 XR4Ti 5-Speed
2001 BMW Z3 3.0 5-Speed
2015 Fiesta ST 6-Speed
2015 Edge 3.5 V6 Auto/Paddles

Ed Lijewski
Level 8
Posts: 7154
Joined: Thu Sep 04, 2003 5:53 pm
Location: The Belly of The Beast

Re: Merkur Depot shorty rad fan setups

Post by Ed Lijewski » Mon May 11, 2015 2:38 pm

Giovanni Battista Venturi, for my channeling him, smiled at me, "whilst" he waggled his finger at thee, Venturi Effect denier. :sawzall :poke :puke :mrgreen:

YMMV 8)
Descartes: "Cogito Ergo Sum"
Lijewski: "Sum Ergo Drive-O. Mucho!

Post Reply
